Description

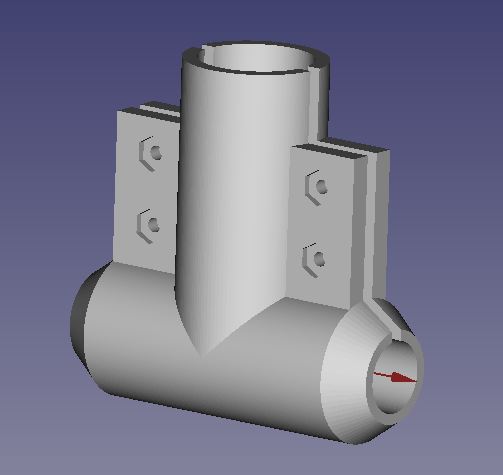

G-code file for 3D printing landing gear T-connector for carbon-fiber tube landing gear.

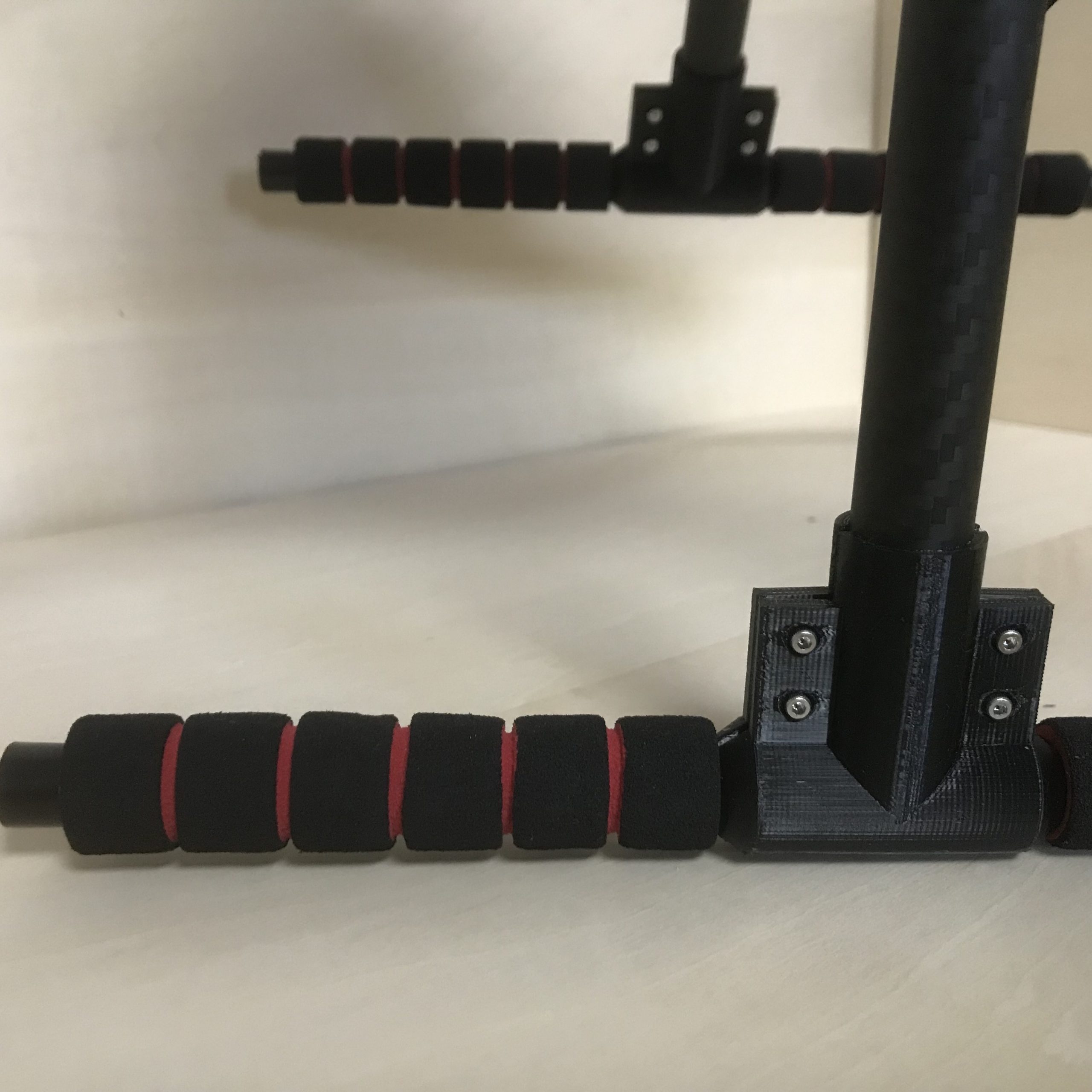

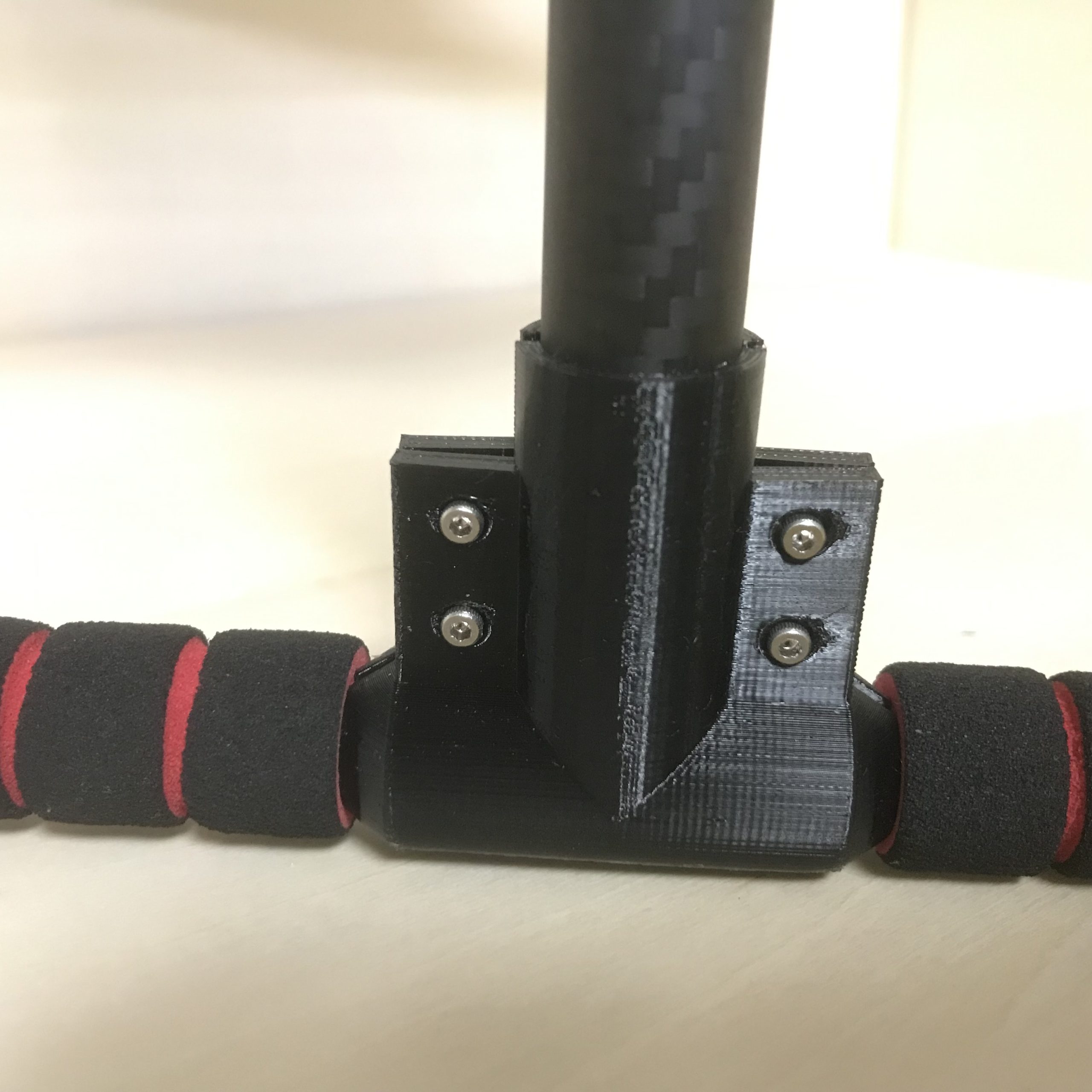

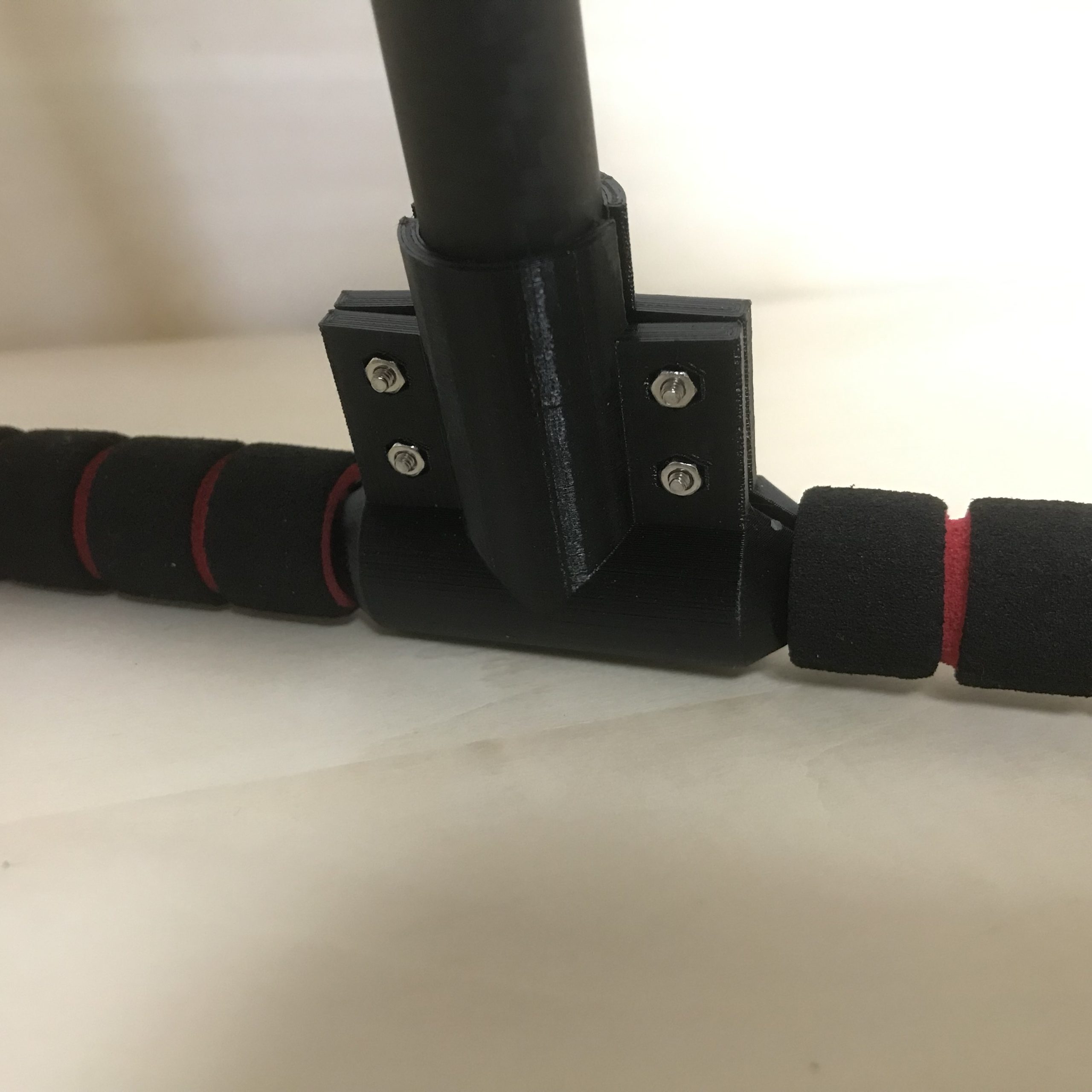

This connector is designed for the Holybro X500 UAV Drone. However, it should support other drone types which use similarly sized carbon-fiber tube landing gear. The leg design is two carbon-fiber tubes with a plastic T connector joint. The leg tube (downward) is 16mm o.d. and the root rail tube is 10mm o.d. The landing gear can take significant force on hard landings, and this is a common point of failure. This part can replace damaged connectors.

Requires 4 x 2M bolts with nuts. Bolt head size 4mm.

• File format: STL, G-CODE
• File generated by: Ultimaker Cura
• Print time: approx. 4 hours, 57 minutes
• Material: PET G
• Nozzle Temp: 235c
• Bed Temp: 60c
• Nozzle Size: 0.4mm
• Layer Height: 0.12mm
• Print Speed: 50mm/sec

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/4.0/ or send a letter to Creative Commons, PO Box 1866, Mountain View, CA 94042, USA.
